Silicone Breather/Vacuum Hose Kit - Toyota Celica GT4 ST205

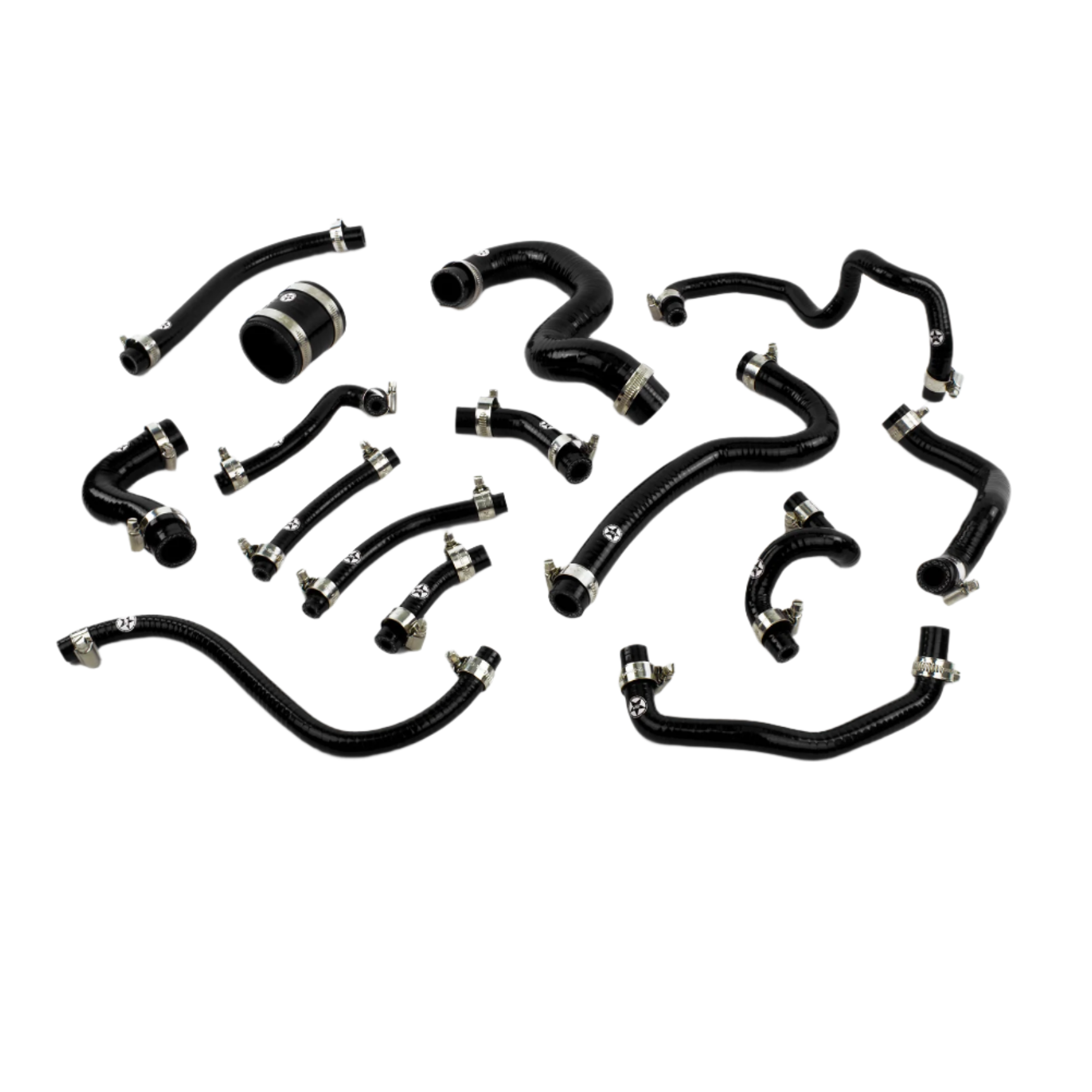

This high quality reinforced silicone hose kit replaces 15 breather and vacuum hoses in the engine bay listed below. The hoses fit all non-WRC right hand drive ST205 (6th Gen) Celica GT4 models and COME WITH WORM DRIVE CLAMPS

1. Turbo To Charge Cooler Inlet Hose
2. Cam Cover to Oil Catch Can Breather Hose
3. Oil Catch Can to Intake Breather Hose
4. Airbox Breather Hose
5. Lower Oil Catch Can Hose
6. Inlet Manifold Breather Hose
7. Inlet Manifold to AC Idle-Up Valve Hose
8. Breather Hose connecting two Metal Pipes
9. Throttle Body Breather Hose
10. Cam Cover to Inlet Manifold Breather
11. Brake Servo to Inlet Manifold Vacuum Hose
12. Actuator Vacuum Hose
13. Actuator Vacuum Hose
14. AC Idle-Up Valve to Charge Cooler Hose
15. Dump Valve Hose


Specification:

• Application: Toyota Celica ST205 Chassis (Standard Non-WRC models only) '94-'99 | Turbo 3SGTE Engines | Manual Transmissions | RHD Models
• Construction: ~4.5mm 4-ply silicone with 3-ply polyester reinforcing
• Max Operating Pressure: >7bar
• Burst Pressure: >10bar
• Operating Temperature range: -50°c to 180°c
