Silicone Air to Water Intercooler Hose Kit - Toyota Celica GT4 ST205

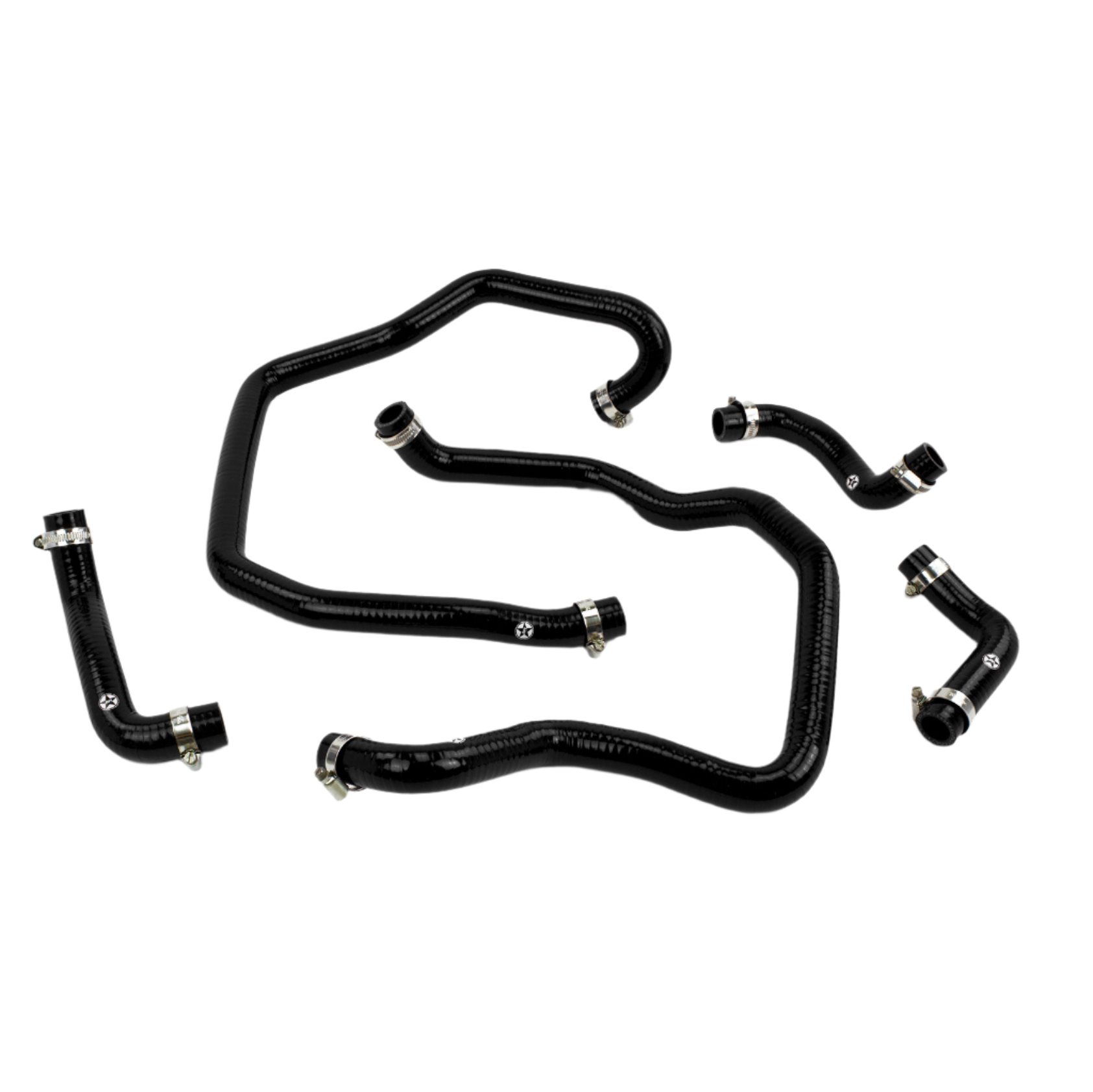

This high quality reinforced silicone hose kit replaces the 5 coolant hoses for the air to water charge cooler radiator in the engine bay listed below. The hoses fit all right hand drive manual ST205 (6th Gen) Celica GT4 models that are still using the original Charge Air Cooler and COME WITH WORM DRIVE CLAMPS. This kit is not needed for models that have replaced the OEM Charge Cooler with a FMIC

1. Charge Cooler to Metal Pipe
2. Metal Pipe to Charge Cooler Radiator Inlet
3. Charge Cooler Radiator Outlet to Charge Cooler Pump
4. Charge Cooler Pump to Metal Pipe
5. Metal Pipe to Charge Cooler


Specification:

• Application: Toyota Celica ST205 Chassis (Standard Non-WRC models only) '94-'99 | Turbo 3SGTE Engines | Manual Transmissions | RHD Models
• Construction: ~4.5mm 4-ply silicone with 3-ply polyester reinforcing
• Max Operating Pressure: >7bar
• Burst Pressure: >10bar
• Operating Temperature range: -50°c to 180°c
