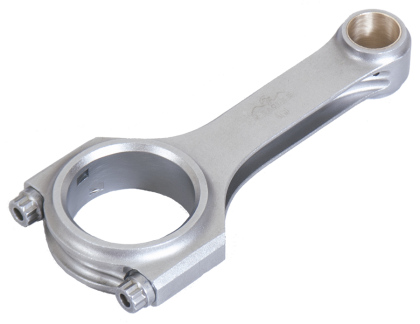

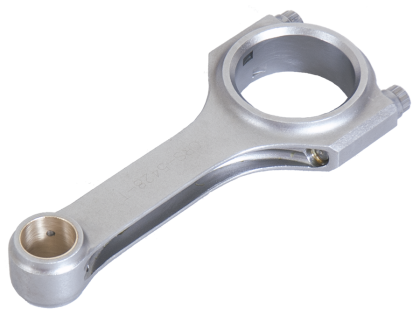

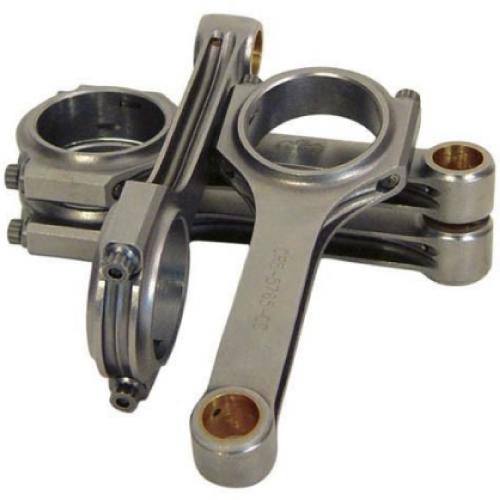

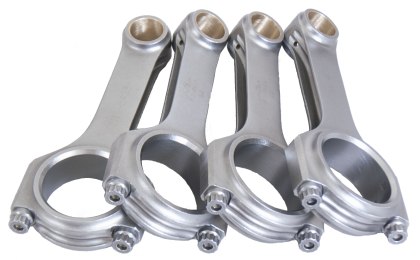

Eagle H-Beam Connecting Rods - 3SGTE
Regular price$429.00
/
- Worldwide shipping available
Eagle H-beam connecting rods are forged from SAE 4340 steel for superior strength. ARP bolts (2000, 8740 or L19 Series) and alignment sleeves are used for durability and precise cap location. Sets are weight matched to +/- 1g. Sizing is performed on the unique Sunnen Krossgrinding system for a perfect housing bore. These are the perfect choice for engines up to 900 hp.
Fasteners: 3/8" ARP 2000
Torque: 43 ftlbs with ARP
Pin fit: bushed
Recommended up to 900 HP
Length: 5.313 in.
Rod journal: 1.771 in.
Housing bore: 1.8900 in.
Pin size: 0.866 in.
Big end width: 0.8630 in.
Pin end width: 0.8630 in.
Thickness above pin: 0.215 in.
Typical weight: 540 g
Applications: Toyota 3SGTE Gen2, Gen3, Gen4 Gen5
Fasteners: 3/8" ARP 2000
Torque: 43 ftlbs with ARP
Pin fit: bushed
Recommended up to 900 HP
Length: 5.313 in.
Rod journal: 1.771 in.
Housing bore: 1.8900 in.
Pin size: 0.866 in.
Big end width: 0.8630 in.
Pin end width: 0.8630 in.
Thickness above pin: 0.215 in.
Typical weight: 540 g
Applications: Toyota 3SGTE Gen2, Gen3, Gen4 Gen5
